Controllable Pitch Propeller Propulsion System

9

9

Controllable Pitch Propeller Propulsion System:

Consist of controllable propeller, propeller shaft , stern tube shaft ,reduce gearbox, hydraulic system,

Remote control system etc.

We can supply ABS,BV,LR,CCS etc cerificates. When ask our product please send us the vessel general

Plan drawing and engine parameters.

Controllable Pitch Propeller Propulsion System

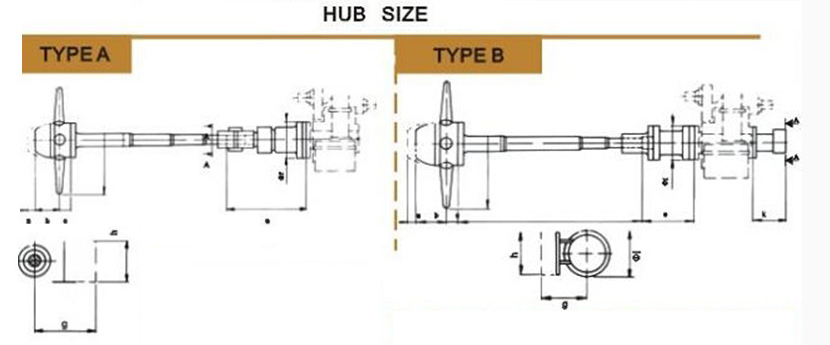

Hub size Blades a b c   Hub Size Blades a b c e f g h l
TSC 35 3 180 254 311
TSC 40 3 190 300 440
TSC 45 3 200 280 341
TSC 53 3 200 350 405   TSC 53 3 200 380 405 440 520 480 420 320
TSC 57 4 240 405 440   TSC 57 4 240 405 440 440 520 480 420 320
TSC 59 3 300 448 250   TSC 59 3 300 448 250 515 580 500 730 350
TSC 63 4 290 456 245   TSC 63 4 290 456 245 515 580 450 420 320
TSC 69 4 320 470 263   TSC 69 4 320 470 265 515 580 500 480 350
TSC 72 4 410 555 305   TSC 72 4 410 555 305 510 820 500 480 350
TSC 79 4 450 610 335   TSC 79 4 450 610 335 525 700 500 480 350
TSC 86 4 490 665 365   TSC 86 4 490 665 365 730 780 580 595 420
TSC 94 4 535 730 400   TSC 94 4 535 730 400 750 850 580 595 420
TSC 95 4 580 650 330   TSC 98 4 280 650 330 930 740 580 595 420

Controllable Pitch Propeller Propulsion System Controllable Pitch Propeller Propulsion System

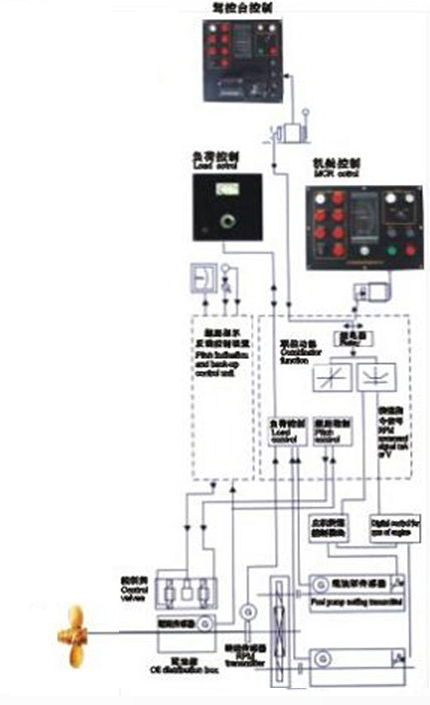

Remote control system:

A complete remote control system consists of following subsystems:

  1. Pitch control-shaft speed command The so called combination system with an adjustable relation between propeller pitch And shaft speed and including command delay function.
  2. Load control Adjusting the propeller pitch continuously so that a predetermined engine load is maintained.
  3. Load sharing control To achieve the desired distribution of the power between 2 engines.
  4. Manipulation demand system For a clear and safe change-over sequence of the control responsibility between bridge and Machinery control stations.
  5. Pitch indication and back-up pitch control An independent system for pitch indication and back-up pitch control by push buttons on the bridge.
