Single-point Telescopic Davit

10

Product Description

The single point telescopic davit consists of one arm which is welded at the ceiling of the upper deck in such a way to allow the promenade deck to be completely free.When it is necessary ,the davit arm can be extended outboard to let boats translation from stored to embarkation position lowering in any trim.More sizes\dimensions are available on requirement.

Technical Parameter:

S.W.L
(KN)

Weight
(kg)

Main Dimensions(mm)

S

B

H

L

32

1900

3850

1620

1115

4300

36

2500

3674

2690

1882

4415

Single-point Telescopic Davit

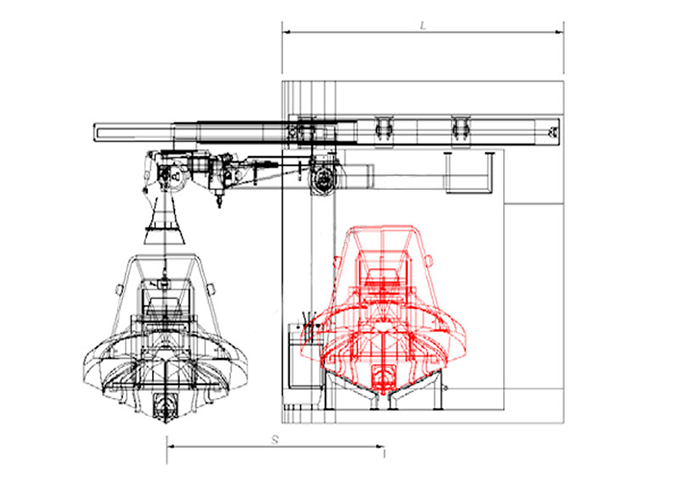

Drawing of Single-point Telescopic Davit

10

Picture of Single-point Telescopic Davit
