Platform Davit

17



Product Description

The Platform davit is installed on offshore platform, which is lowering lifeboat and rescue boat depending on boat self weight, and recovering the lifeboat and rescue boat by electric boat winch.Its structure is simple and performance stable and reliable.Its design and building is according to the latest regulations of SOLAS and international standards.

Specifications:

Max.Working Load

B

H

Totally Weight

85

2790

3650

4500

115

2850

3900

5200

145

2800

4300

5800

175

3020

3700

7500

All the measures can be tailored according to your requests.

Specifications of other types:

Safety working load(KN)

Max.width(mm)

Max.Height(mm)

30

1400

2525

85

2500

4100

125

2600

4100

150

2780

4300

170

3000

4500

210

3000

4800

Platform Davit

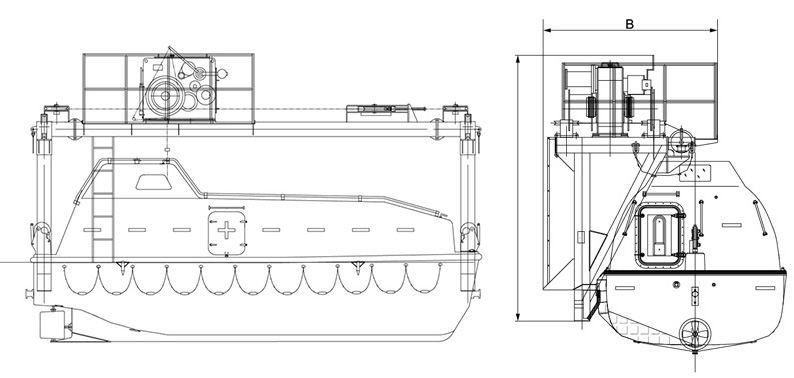

Drawing of Platform Davit
