Product Description

The Free Fall Lifeboat Davit is a special equipment for lowering free-fall life boat; In an emergency condition, the life boat can be launched into the water fast.And it conforms to the requirement of the amendments to SOLAS 1996—-MSC.47(66) , International LSA Code MSC.48(66),IMO Resolution MSC81(70) and MSC.216(82), MSC.218(82) and MSC.226(82).

More details:

The Freefall Davit placed at the stern of the ship consists of a launch ramp davit arm, winch and hydraulic unit

Quick get away from sinking vessel

Always standby for launch

Launching ramp for freefall lifeboats in a welded or flanged box girder execution

Suitable for all types of Freefall boats

Other sizes/dimensions available on request

Specifications:

Working Load

(KN)

Max Recovery Load

(KN)

Min Lowering Load

(KN)

Hoisting Speed

(m/min)

Ramp angle

Drum Capacity

(m)

55

42

26

>3

35°

45

70

45

35

3~6

50

Type

Description

Size

Capacity

Weight

Full weight

Suitable davit

4.9m

Ordinary type

4.9×2.18×3.0m

≤16P

2580kg

3900kg

55KN free-fall life boats launching appliances

fire resistant type

2870kg

4190kg

5.9m

Ordinary type

5.9×2.75×3.1m

16P-26P

3055kg

5200kg

fire resistant type

3270kg

5415kg

6.0m

Ordinary type

6.0×2.32×3.1m

≤20P

3000kg

4650kg

fire resistant type

3300kg

4950kg

6.75m

Ordinary type

6.75×2.75×3.1m

≤32P

3530kg

6170kg

70KN free-fall life boats launching appliances

fire resistant type

3840kg

6480kg

Other types:

Specifications of 55-300KN Free Fall Lifeboat Davit:

Max. Safety working load

Max. hoisting load

Rope capacity of the reel

Hoisting speed

Hoisting speed wire rope

55KN

42KN

50M

≥3m/min

φ20-18×19-1770

65KN

42KN

50M\td>

≥3m/min

φ20-18×19-1770

75KN

50KN

75M

≥3m/min

φ20-18×19-1770

100KN

60KN

100M

≥3m/min

φ20-18×19-1770

150KN

100KN

110M

≥3m/min

φ20-18×19-1770

300KN

190KN

220M

≥3m/min

φ20-18×19-1770

All the measures can be tailored according to your requests.

Free Fall Lifeboat Davit

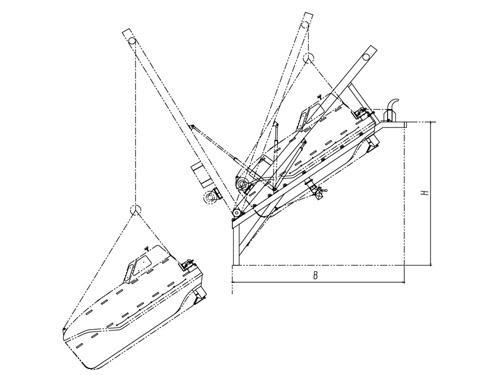

Drawing of Free Fall Lifeboat Davit

14

Picture of Free Fall Lifeboat Davit
